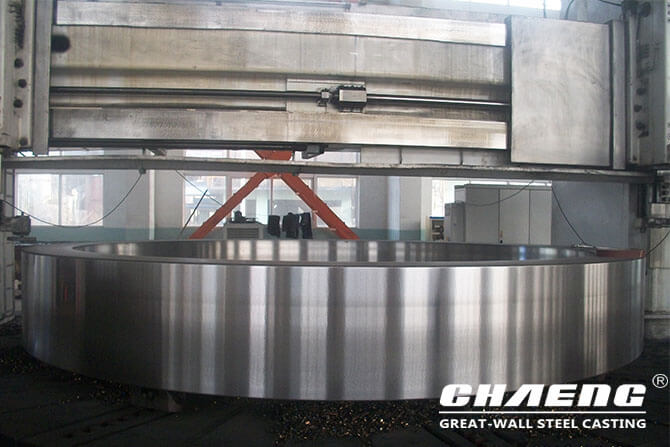

Rotary kiln tyre- riding ring of kiln
2018-05-28 | Editor:
The rotary kiln tyre is also called the riding ring, and its function is to transfer all the gravity of the cylinder, including the gravity of the firebrick, the internal device and the material, to the support roller, and make the cylinder turn steadily on the support roller, so the kiln riding ring should have enough strength and durability. At the same time, the riding ring is also a component that strengthens the radial stiffness of the cylinder, and it should have enough rigidity.
There are several shapes of the cross section of the rotary kiln:
1. Rotary kiln rectangular riding ring
Its section is solid rectangle, its shape is simple and its manufacturing quality is easy to guarantee. Its general service life is longer than that of box - shaped riding ring. But its stiffness is relatively small, the material is not used reasonably and the heat dissipation is poor.
2. Rotary kiln box-shaped riding ring
The section is hollow box shaped, with good thermal condition and rigidity, and the material utilization is difficult to be used reasonably. The integrated structure of the riding ring and the cylinder body can avoid the "necking temperature stress" between them. Moreover, the riding ring can give full play to the reinforcement of the cylinder and make the material of the riding ring reasonably utilized, simplify the manufacture and installation work, and facilitate the operation.
CHAENG has strong production and processing capacity, advanced facilities and fully equipment. It has φ8m heavy double-column vertical lathe, φ6.3 m vertical lathe and φ8m gear hobbing machine imported from Russian, Czech T6920 landing boring-milling machine and domestic TX220 floor type boring-milling machine, 6625Y (2.5m × 8.0m) gantry milling machine imported from Russia, domestic 120 × 3000 heavy CNC Universal Machine, and other processing equipment.
CHAENG is able to provide customers with high-quality kiln riding ring according to users’ drawings.
Weight: 5-80T
Material: ZG45, ZG42CrMo, etc
Other specifications: according to drawings and demands
The advantages of CHAENG kiln riding ring:
1. High strength and good durability
2. Advanced double medium quenching process
3. High quenching hardness
4. Good wear resistance
5. Simple structure and easy to adjust and repair
Our company's integrity, strength and product quality have been well received in the industry. Welcome friends from all over the world come to visit our company for guidance and business negotiation!
